Gas Lift Cylinder: Sizing, Selection, Installation, and Quiet Performance for Seating and Cabinetry

Adjustable gas lift cylinder for office chair: Ergonomics, Safety, and Precise Setup

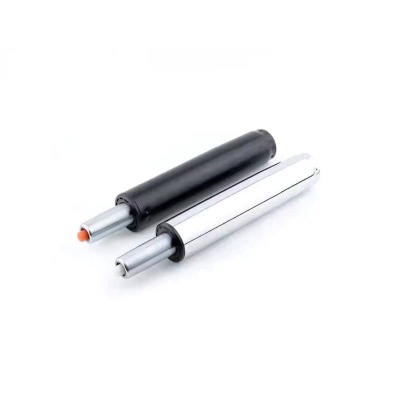

A gas lift cylinder—sometimes called a gas spring or pneumatic column—is a sealed device that stores energy in compressed nitrogen and controls movement with a small internal valve. In office seating, the adjustable gas lift cylinder for office chair enables smooth height changes while supporting the user’s weight so posture can be dialed in with millimeter-level precision. When the handle is pulled, the valve opens briefly and lets pressure equalize across the piston, allowing the seat to move; when the handle is released, the valve closes and the selected position is held. This simple mechanism, when properly sized, eliminates “drift” during the day and prevents the jarring end-stops that fatigue the lower back.

Ergonomic Targets and Why They Matter

The primary goal is to place the user so thighs are roughly parallel to the floor, feet rest flat, and elbows hover just above the desk surface when shoulders are relaxed. To hit those targets for a broad population, choose a stroke long enough to serve both shorter and taller users and a force class that balances the combined mass of user, seat, and mechanism. A cylinder that is too strong resists lowering and can “float” upward when the user partially unweights the seat; a cylinder that is too weak sinks slowly even when the handle is not pulled. Either error forces constant micro-adjustments and increases fatigue over long shifts.

Key Selection Parameters

• Stroke — the travel from minimum to maximum seat height; common values range from 80–140 mm for task chairs and up to 200 mm for stools.
• Minimum and maximum lengths — determine whether the lowest and highest positions fit desk geometry without compressing the user into a shrug or leaving feet dangling.
• Force class — the internal pressure that sets how easily the chair rises and how firmly it holds when the lever is released.
• Interface geometry — taper size for the base and cone for the mechanism; verify to avoid wobble or improper seating.
• Valve feel and damping — smooth metering allows gradual descent without step-like motion or bounce at end-stops.

Installation, Commissioning, and Safety

Before inserting the cylinder, clean mating tapers to ensure a secure, creak-free press fit. Insert the column into the base first, then align the chair mechanism over the piston cone and press firmly; avoid hammering the rod end to protect seals. Commission by cycling the chair through full travel with a representative user: if the seat rises on its own when the lever is released, choose a lower force class; if it sinks, step up one class. Train users to unweight the seat slightly while actuating the lever for smoother motion and longer valve life. Treat every cylinder as a sealed pressure vessel—do not puncture, crush, or expose to high heat.

Quick Checklist for a Good Fit

• Seat height covers the intended percentile range of users.
• Movement is smooth with no stick-slip or “notches.”
• No wobble at the base or mechanism interface after several cycles.
• End-of-stroke feels cushioned rather than abrupt.

Heavy duty gas lift cylinder replacement: Load Ratings, Durability, and Upgrade Choices

In environments with heavier users, 24/7 staffing, or frequent sharing, a heavy duty gas lift cylinder replacement can dramatically extend service life. Compared with standard units, heavy-duty cylinders typically employ thicker pressure tubes, larger-diameter rods for buckling resistance, and seals formulated for higher loads and more cycles. The upgrade goal is not simply to raise force; it is to maintain controlled motion and consistent holding power across a wider spectrum of real-world conditions, including temperature swings and side loads from leaning or rolling over uneven floors.

Where Heavy-Duty Pays Off

• Shared workstations where chairs are adjusted dozens of times per day.
• Industrial spaces with dust and temperature variation that accelerate seal wear.
• Situations where users frequently lean forward or sit on the edge, increasing side loads.

Standard vs Heavy-Duty — Narrative Comparison

A standard cylinder is lighter and less costly and often feels slightly easier to actuate at low loads; however, under high static or dynamic loads it may show gradual sinking or develop wobble sooner as interfaces wear. A heavy-duty cylinder resists that creeping descent, keeps motion linear after many more cycles, and stays straight under side loading, though it can weigh more and cost more up front. If chairs are assigned to lighter, single users, standard units may be economical; if chairs are pooled or used around the clock, the heavy-duty option usually yields a lower total cost of ownership because replacements and downtime decline.

Upgrade Tips

• Match taper and overall length to preserve seat geometry after replacement.
• Document pre-retrofit min/max seat heights and verify them post-install.
• When in doubt between two force classes, choose the lower and rely on stroke to cover most users; excessive force harms usability.

Gas lift cylinder size chart: Dimensions, Force Classes, and Quick Selection

A clear gas lift cylinder size chart reduces guesswork by mapping use cases to geometry and force. The three core numbers are minimum length (compressed), stroke (usable travel), and maximum length (compressed plus stroke). Combine those with an appropriate force class so the chair neither rises on its own nor sinks when the lever is released. Because bases and mechanisms add stack height, always treat any chart as a starting point and confirm on the actual chair to avoid uncomfortable extremes for shorter or taller users.

Rule-of-Thumb Mapping by Use Case

• General task chair: medium force, 100–120 mm stroke, modest minimum length for standard desk heights.
• Shared benches: medium-high force, 120–140 mm stroke to cover a wider population.
• Drafting stools: high force, 160–200 mm stroke paired with a foot ring for stability.
• Compact seating: low force, 80–100 mm stroke and short minimum length for low desks.

Illustrative Chart (Indicative Values)

How to Use the Chart Effectively

1. Start with user population and desk height; select a stroke that covers both ends.
2. Pick a force class that balances the chair with a typical user; verify that it does not self-rise.
3. Check minimum and maximum lengths against real furniture to avoid knee or shoulder pinch at extremes.
4. Prototype one chair and collect feedback before standardizing across your fleet.

How to measure gas lift cylinder stroke: Tools, Methods, and Verification

Knowing how to measure gas lift cylinder stroke prevents ordering errors and ensures ergonomic targets are met. The most reliable method is to measure off the chair: record closed length with the rod fully inserted, then open length with the rod fully extended; the difference is the stroke. When removal is impractical, you can mark the exposed rod at the lowest and highest seat positions, then measure the distance between marks. For best repeatability, use consistent reference points (base cone seat to rod tip or adapter shoulder), measure twice, and average the results.

Step-by-Step Procedure

1. Remove the cylinder carefully, protecting the rod from dents or scratches.
2. Identify reference planes: base cone seat and the top of the rod or attached adapter.
3. Measure closed length on a flat surface with light axial load to ensure full compression.
4. Allow full extension, then measure open length between the same reference points.
5. Compute stroke: S = L_open − L_closed.
6. Record outer tube and rod diameters to confirm stiffness and interface class.

Methods Compared in Sentences

Measuring off the chair is usually the most accurate because the mechanism cannot obscure true end-stops; measuring on the chair is faster but can under-report travel if linkages limit motion. Calipers provide tighter tolerances than a tape measure, but a rigid ruler is adequate if measurements are repeated. Reading manufacturer data is quickest when model numbers are known; however, substitutions or design revisions can make printed numbers diverge from the part in hand, so a physical check is wise before purchasing a batch.

Common Pitfalls to Avoid

• Mixing reference points between closed and open measurements.
• Ignoring stack height from adapters or decorative shrouds.
• Measuring while the valve is partially open, which yields inconsistent readings.

Quiet gas lift cylinder for cabinets: Noise Sources, Damping, and Mounting Best Practices

In casework and furniture lids, a quiet gas lift cylinder for cabinets transforms perceived quality by eliminating slams, squeaks, and chatter. Unlike vertical seating columns, cabinet cylinders operate at various angles and leverage changes throughout the stroke, which amplifies any misalignment or over-sizing. Noise usually comes from three places: internal turbulence when gas speeds are too high, low-speed stick-slip at dry rod seals, and external resonances in brackets or thin panels. The antidote is threefold—correct force so mid-stroke speeds stay modest, smooth valving or soft-close damping near end-of-travel, and rigid mounting that prevents hardware from acting as a sounding board.

Design Guidelines for Quiet Operation

• Favor longer stroke with slightly lower force to reduce peak opening speed.
• Mount rod-down in the closed position when possible so oil lubricates the main seal.
• Use spherical bearings or polymer-bushed pivots to accommodate small misalignments without squeak.
• Add elastomer bumpers at contact points to soak up residual energy at end-stop.
• Stiffen brackets and check fastener torque after 10–20 cycles as materials settle.

Noise Symptoms, Causes, and Fixes

If motion emits a chirp at start-up, the seal is likely dry; cycling the lid several times with the rod oriented downward often restores silence. If a cabinet “pops” near full open, the force is probably too high or leverage increases late in the stroke; moving the bracket a few millimeters to flatten the moment arm can smooth the profile. Persistent rattle after motion stops is typically external—loose screws, thin panels, or hardware contact—so bracing or gasketing solves it without changing the cylinder itself.

Verification Checklist

• Cycle open/close at least 20 times to seat seals; evaluate sound thereafter.
• Confirm no interference across full travel, including handles and adjacent panels.
• Ensure pivots cannot bind at extreme angles; binding amplifies noise and reduces life.
